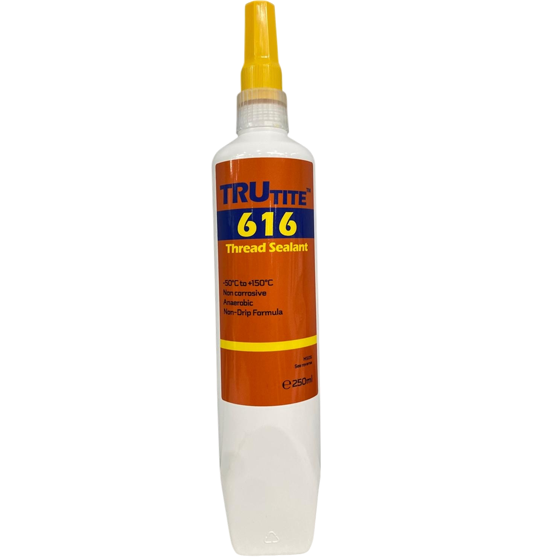

Trutite™ 616 Thread Sealant
| Inner Packaging | Outer Packaging |
| 9no | 54no |
TruTite™ 616 Thread Sealant is designed for the instant assembly of threaded fasteners which if required can be disassembled with standard hand tools for maintenance or replacement purposes, it is a high viscosity and medium strength sealant.
EN751-1: Gas Standard
BS 6920: Water Approval Standard
TruTite™ 616 Thread Sealant
Product Description
TruTite™ 616 Thread Sealant is designed for the instant assembly of threaded fasteners which,
if required, can be disassembled with standard hand tools for maintenance or replacement purposes.
It is a high viscosity, medium strength anaerobic thread sealant.
The product cures anaerobically when oxygen is no longer present. This occurs when air between
two metal fittings is displaced, allowing the yellow liquid to cure within minutes (see curing times).
Once cured, it forms a strong seal that prevents loosening and leakage caused by vibration.
TruTite™ 616 Thread Sealant is most commonly used on brass and steel and is also effective on
stainless steel, aluminium and BZP steel. It fills large distance gaps and delivers excellent results
on wide-diameter threaded applications up to 0.5 mm.
Technical Information
| Chemical Type | Methacrylate Ester |
|---|---|
| Appearance (Uncured) | Yellow |
| Components | Requires no mixing, ready to use |
| Viscosity | Thixotropic, 50,000 – 60,000 cPs |
| Cure Type | Anaerobic |
| Application | Thread Locking |
| Strength | Medium |
| Thread Pitch Filling | Up to 0.5 mm |
| pH Level | Non-corrosive |
| Temperature Range | -10°C to +150°C |
| Flash Point | > +93°C |
| Relative Density | 1.02 |
| UFI | CMH6-T0MC-Q00R-5XMH |
Curing Times
| Metal Type | Curing Duration |
|---|---|
| Brass | Up to 1 minute |
| Steel | Up to 5 minutes |
| Stainless Steel | Up to 8 minutes |
| Zinc Plated Steel | Up to 30 minutes |
| Aluminium | Up to 35 minutes |
Please note: curing time may be affected by thread pitch and ambient temperature at the time of application.
Results are based on application in a 22°C environment.
The system can be used within 1–3 hours of application.
Full curing time is typically between 8–12 hours.
Standards & Approvals
- EN751-1: Gas Standard
- BS 6920: Water Approval Standard
Directions for Use
Before use, read the TruTite™ 616 Thread Sealant MSDS.
- Ensure all metal parts are clean and dry.
- Apply the sealant in one full rotation to both the male and female metal threads.
Use sparingly; excess product will not cure. - Remove any excess material with a cloth.
- To disassemble, use standard hand tools. If disassembly is difficult, heat the joint up to 250°C
and attempt removal while hot. - Product is not suitable for use on plastic fittings.
Storage
Always store in the original 250 ml container in a cool, dry place.
The optimum storage temperature is 22°C. Avoid direct sunlight.
Storage below 5°C or above 30°C may negatively affect product performance.
Product life is 24 months from date of manufacture (see reverse of packaging for expiry date).
Health and Safety
TruTite™ 616 Thread Sealant contains methacrylate esters.
For additional safety information, read the MSDS before use.
Technical Data Sheet
Product: TruTite™ 616 Thread Sealant
Version: 1.0
Date: 25/11/25
PHD Ltd reserves the right to alter or amend product data without prior notification.
Disclaimer
The information provided, including recommendations for use and application, is based on our knowledge
and experience of the TruTite™ 616 Thread Sealant product as at the date of this Technical Data Sheet.
The product may be used under various application and working conditions beyond our control.
Plumbing and Heating Distribution Ltd shall not be liable for results arising from such conditions or
from use on differing metals.
We strongly recommend carrying out your own trials to confirm suitability for your intended application.
Any liability in respect of this data sheet or other written or oral recommendations is excluded.
